Simulating the Smart Grid

via The Smart Grid by Manfred P on 4/30/13


In our PowerTech2013 paper Simulating the Smart Grid we propose a meta-model for a complete view onto the Smart Grid.

Power systems face increased complexitiy because of developments leading to more interdependencies between the power system components. For example:

• The progress of ICT in the last decades allows new applications in the field of energy.
• With increasing energy production in small distributed and private plants, the power flow direction is no longer unidirectional, from power plants to endusers. The former consumers becomes a prosumers.
• Increased use of renewable energies makes the energy production less schedulable. Loads need to be stored or shifted in time. A high need for efficient storage possibilites is generated.
• The energy market has been liberalized what gives rise to new energy related products and services.

The Smart Grid as Agents operating on several layers of complex flow networks.

 Power systems, as we knew them, are geting smarter by use of ICT. Liberalization of power market is expected to increase efficiency and energy product variety. New developments enable new perspectives which further drive new developments - it is hard, sometimes impossible, to distinguish between the drivers and the outcomes of this process.The make this highly complex system more comprehensive, we propose to view it as agents operating on different flow networks. The agents optimize their flow according their individual utility function. The rules for the different types of flow are resulting from the subsystem design. The model is generic but as flows are a measurable quantities it is suitable for quantitative extensions.

M. Pöchacker, A. Sobe, W. Elmenreich: Simulating the Smart Grid, IEEE PowerTech2013, Grenoble, June, 2013.

e-puck solving a maze

via Networking Embedded Systems by wlfred on 4/19/13


As a result from Rene’s and Kevin’s work, we can show a maze-solving application for an e-puck. The approach has been implemented on real hardware and tested in a simulation using Webots. To solve the task, different sensors of the e-puck (IR-Light Sensor, Distance Sensor, …) have been combined, so that the e-puck could solve this maze. The robot follows the right wall, until he finds its goal (a dark sector in the maze) – then the LEDs are blinking and it makes a sound, so you notice, it has finished.

As you can see in the video, the approach works (though the robot is moving a bit slowly); also the simulation predicts very similar results.

EvoENERGY - Evolutionary Algorithms in Energy Applications @EvoStar 2013, Vienna

via The Smart Grid by Wilfried Elmenreich on 4/4/13


EvoStar comprises several co-located conferences on the topic of evolutionary computing. The track of EvoENERGY contained five paper presentations of interesting ideas for the Smart Grid.

Ana Soares from the University of Coimbra presented her work on "Domestic Load Scheduling Using Genetic Algorithms" where a Genetic Algorithm is used to optimize for an objective function considering energy consumption, end user preferences, peak power, and presently available energy. Encoding of solutions was done as string of integers where the recombination was done by a bit mask over the integer string (so no typical crossover). The evolved results define scheduling of loads from household appliances in order to fulfill the above defined objectives.

Stephan Hutterer from FH Hagenberg approached the optimal power flow problem with an evolutionary algorithm. Optimal control policies are learned offline for a given power grid resulting in general abstract rules for optimal power flow.

"Prediction is difficult, especially of the future" (Nils Bohr) - the prediction of power load profiles can be improved with the approach presented by Frédéric Krüger from the Université de Strasbourg. They show how a genetic algorithm generated with the EAsy Specification of Evolutionary Algorithms (EASEA) language can be applied to solve a noisy blind source separation problem and create accurate power load profiles using real world data.

Another approach for forecasting electrical consumption was presented by Martina Friese and Oliver Flasch from FH Köln in his talk on "Comparing Ensemble-Based Forecasting Methods for Smart-Metering Data". They apply state-of-the-art time-series forecasting methods to electrical energy consumption data recorded by smart meters and show that genetic programming is an attractive alternative to custom-built approaches for electrical energy consumption forecasting.

Dominik Egarter from Alpen-Adria-Universität Klagenfurt presented the paper "Evolving Non-Intrusive Load Monitoring" [PDF]. Here, an evolutionary algorithm is used to determine a set of devices for a given load curve - in other words, your smart meter knows what devices you have on even if they are not smart. The work on evolving non-intrusive load monitoring shows the capabilities of the approach but also its limits. The latter basically tell you how much you have to masquerade your power profile so that it does not give away information about the devices that constituted it. See also this blog article on Dominik's work.

JGridMap - Fast and Easy Visualization of Objects in a Grid

via Self-Organizing Networked Systems by Wilfried Elmenreich on 3/21/13

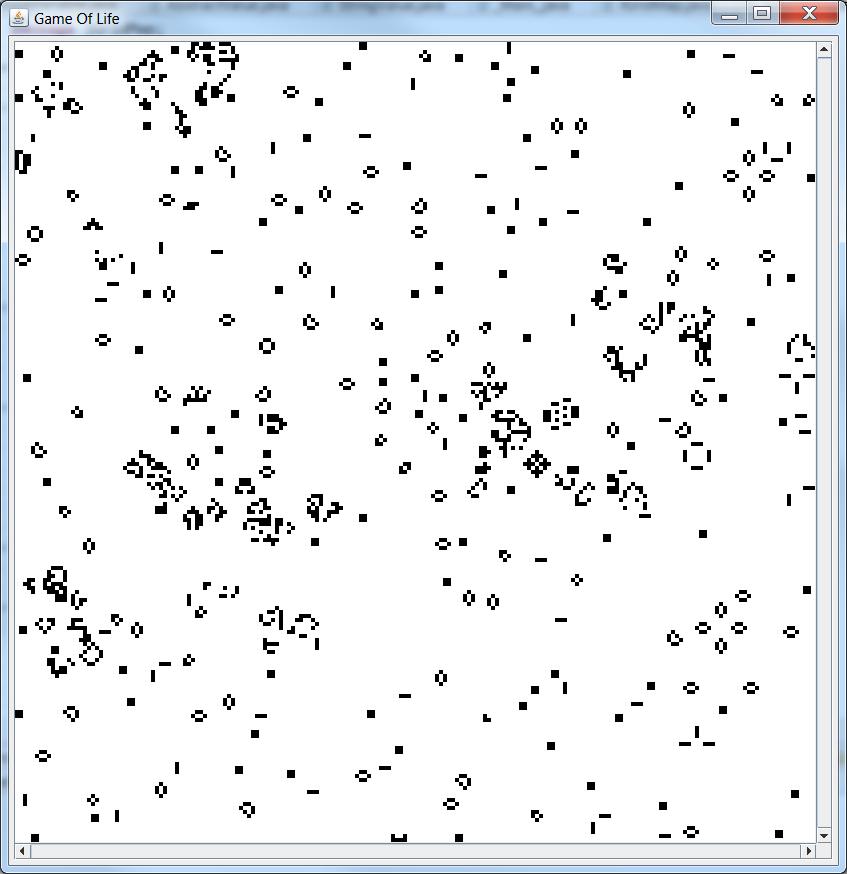

Conway's Game of Life implemented with JGridMap

Many models for complex systems start with some markings on a piece of squared paper. This is probably the most straightforward approach to depict agents in their environment. However, in order to model a complex system, the cells need to interact, which is hard to implement on paper but easily done with a computer. However, if you, like me, have a favor for Java, then there was no quick way for implementing a cellular automata with graphical visualization. In the end, programmer have spent 90% of the time getting the graphics right and at most 10% remained for the actual model of interest.

After reviewing several frameworks for displaying nice grid structures, we decided there is a need for an easy to use and fast Java library. Our project JGridMap is now about two years old and mature to support you for fast and easy visualization of objects in a grid. With JGridMap you can quickly implement a visualization for cellular automata including proper routines for zooming. Cells can be painted with a selected color or with a picture of your choice, which makes it easy to create attractive visualizations.

JGridMap is available as open source project at http://sourceforge.net/projects/jgridmap/ under GPLv3.

Examples of projects done with JGridMap:

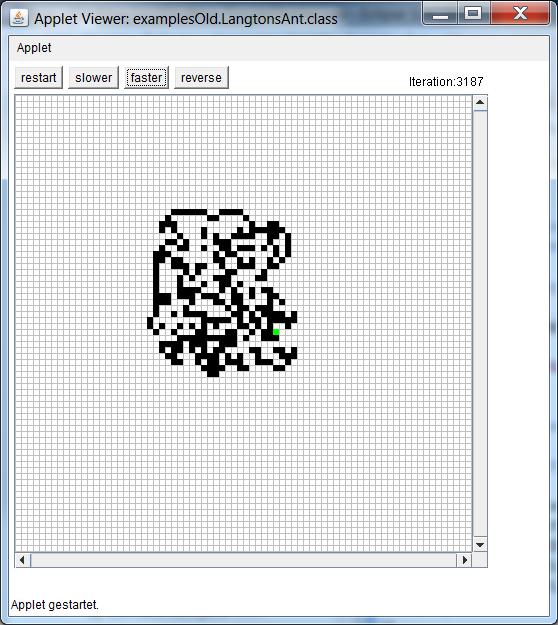

Langton's Ant simulation:


Vampires vs. Werewolves simulation:



Integrated in the Framework for Evolutionary Design (FREVO):


Graphical engine for a Smart Grid simulator:

Wireless Time-Triggered Communication using a Firefly Clock Synchronization Approach

via Networking Embedded Systems by wlfred on 3/20/13


In South-East Asia, huge swarms of fireflies synchronously emit light flashes to attract mating partners. The underlying principle can be used to implement a robust and scalable distributed synchronization approach in wireless sensor networks.

AVR Z-Link Zigbee Nodes

In this work we implement the Firefly Algorithm on battery-powered low-cost wireless nodes to establish a time-triggered network with a global notion of time. This global notion of time is used by the protocol but also provides a service that can be used by real-time applications. The synchronized nodes perform a time-triggered communication, where the sending instant of each message is known a priori to all nodes. This enables the implementation of an energy-efficient low duty-cycle protocol, where sender and receiver units can be turned off during silent phases.



R. Leidenfrost and W. Elmenreich. Establishing wireless time-triggered communication using a firefly clock synchronization approach. In Proceedings of the Sixth International Workshop on Intelligent Solutions in Embedded Systems, pages 227–244, Regensburg, Germany, July 2008.

Open-Source Energy Monitoring Hardware

via The Smart Grid by Dominik Egarter on 3/11/13


OpenEnergyMonitor hardware: raspberry pi, emonTX  and emonGLCD

In our smart microgrid laboratory at the Alpen-Adria-Universität Klagenfurt we need to be able to measure energy flows at different places in the network. Our criteria had been to be able to measure power, current, and voltage with adjustable measurement time intervals. The meters should be networked wirelessly with a visualisation possibility via an embedded device or a web page. In order to implement appropriate measurement strategies (for example measuring with a time-triggered architecture) the system should be fully programmable, in other words open-source.

emonCMS web-app visualization tool

To meet this requirements we decided to use the OpenEnergyMonitor. It provides a metering board emonTx, which is based on Arduino and communicates to some base station. This can be either a own-built base station emonBase from OpenEnergyMonitor or the nowadays trendy Raspberry Pi. All necessary software is provided and easy to use. The OpenEnergyMonitor also provides an energy visualisation tool called emonCMS, which can be installed on the Raspberry Pi. It can be used for processing, logging and visualizing energy. Like the other software also the emonCMS is open source.

Links:

• Raspberry Pi, a credit-card-sized embedded computer running Linux
• OpenEnergyMonitor, open-source energy monitoring tools
• A. Monacchi, D. Egarter, W. Elmenreich. Integrating Households into the Smart Grid. Workshop on Modeling and Simulation of Cyber-Physical Energy Systems, Berkeley, CA, May 2013.
• W. Elmenreich, G. Bauer, and H. Kopetz. The time-triggered paradigm. In Proceedings of the Workshop on Time-Triggered and Real-Time Communication Systems, 2003.
